The FBGA package was designed as a cost-effective CSP solution specifically for high frequency memory devices (ex:DDR II). The structure provides the shortest wire length and outstanding electrical performance for the central-pad device layout through the use of low-cost wire bonding and BGA technologies. Generally, FBGA is defined to have the thickness of 1.2 mm and 1.0 - 0.8 mm ball pitch. ChipMOS offers several packages, including:
Type | Packae Size | Connections |
FBGA | 7.5 x 13 mm | 96 |
8 x 11.5 mm | 78 | |
8 x 12.5 mm | 84 | |
8 x 13 mm | 60/84/96 | |
9 x 10.5 mm | 78 | |
9 x 13 mm | 96 | |
10 x 12.5 mm | 60/84 | |
10 x 13 mm | 96 | |
10 x 14 mm | 78/96 | |
10.5 x 13 mm | 60/84 | |
11 x 13 mm | 60/84 |

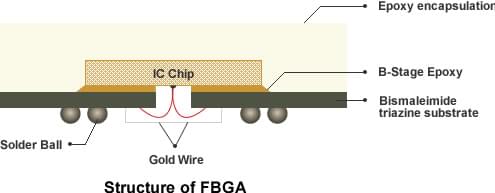

Structure of FBGA
Applications
The FBGA package is an ideal IC package for devices such as SDRAM, SGRAM, DDR SDRAM, DDR II/III/IV/V SDRAM, RAMBUS DRAM and next generation memory products.
Features
ChipMOS' FBGA packaging provides:
- Die-down structure
- Thin core substrate material (BT)
- Low profile (1.2 mm max. total thickness)
- Low stress die attach adhesive
- Ball pitch range from 0.75 to 1.0 mm
- Customer substrate design available
Reliability
Moisture sensitivity | JEDEC Level 3 | - |
High Temp. Storage Test | 150°C | 1000 hr. |
Temperature Cycling | -55°C/125°C | 1000 cycles |
Pressure Cooker Test | 121°C/100% RH/2 atm | 168 hr. |
Temp. & Humidity Test | 85°C/85% RH | 1000 hr. |
Process Highlights
Wafer Backside grinding | Available |
Die Thickness | 10 ± 0.5 mil |
Ball diameter | 0.45 mm |
Marking | Laser |
Coplanarity | < 4 mil |
Ball Inspection | Optical |
Packing/Shipping | Bar code, dry packing |
Shipping
JEDEC standard tray
